Supports cutting, punching, marking, and labeling processes.
Source factory
CNC Fabric Cutting Machine Manufacturer
- Factory price: save 15% of middleman cost
- High Quality: All key parts use international brands
- Suitable for: small batch, multi-style cutting: 1-20 layers of fabric/textile.
- 3-Year Warranty: 3 years warranty on motors, vacuum pumps, and key parts
10+ Years
AMOR has over 10 years of experience in CNC equipment manufacturing, with proven installation methods and solutions.
R&D
Developed 16 tools to handle 9 different processing methods for various non-metal materials, from rolls to sheets.
Fast Delivery
Standard models 1625, 1630, and 1640 can be delivered in 7 days.
3 hot-selling machines
Designed for continuous & automatic cutting of rolled fabrics and textiles.

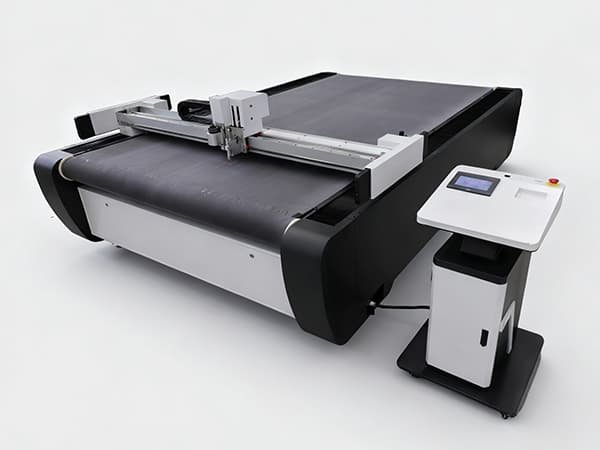

AMOR-1625/30BK
Our best-selling automatic cutting machine meets the needs of sofa and automotive interior industries.
- Working area: 1600 × 2500/3000 mm
- Cutting speed: ≤1500 mm/s
- Feeding height: 60mm (customizable ≤ 200mm)
- Fixing material: 7.5KW Vacuum adsorption
- Input power: 380V/11KW

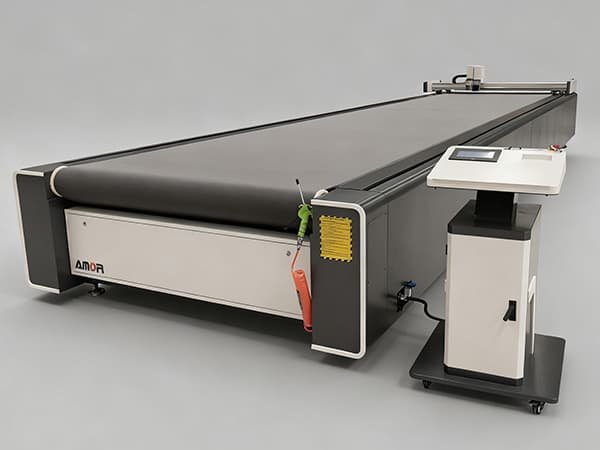

AMOR-1670BK
The extra-long machine body allows one-time cutting of large patterns with high precision.
- Working area: 1600 × 7000 mm (Customizable)
- Cutting speed: ≤1500 mm/s
- Feeding height: 60mm (customizable ≤ 200mm)
- Fixing material: 9KW Vacuum adsorption | 16 zones
- Input power: 380V/15KW

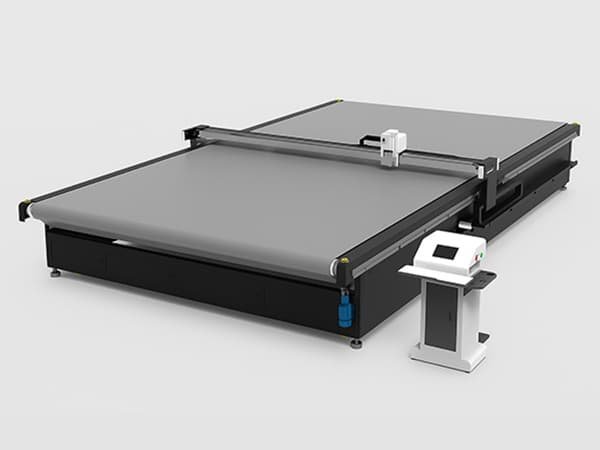

AMOR-3040BKS
Its wide and extended design supports continuous cutting of extra-wide fabric rolls.
- Working area: 3000 × 4000 mm (Customizable)
- Cutting speed: ≤1500 mm/s
- Feeding height: 60mm (customizable ≤ 200mm)
- Fixing material: 9KW Vacuum adsorption | 16 zones
- Input power: 380V/15KW
8 best-selling tools
Driven Wheel Cutter Tool
Uses a 16-edged round blade for fast rotary cutting. Ideal for cutting 1–5 layers of textiles or fabrics.
High-Frequency Pneumatic Oscillating Tool
Vibrates 16,000 times per minute. Suitable for cutting 1–15 layers of PU leather, Oxford fabric, and other multi-layer materials.
Punching Tool
Performs quick punching for sewing notches or round holes of 1–5 mm in diameter.
Inkjet Printing Tool
Efficiently prints large amounts of text or labels at high speed.
High-Frequency Electric Oscillating Tool
Operates at 18,000 vibrations per minute. Perfect for single-layer cutting of PU leather and PVC fabric.
Drag Knife Tool
Designed for cutting thin materials such as aluminum foil and film. Produces smooth, clean edges.
Marking Pen Tool
Uses a heat-erasable pen for marking or drawing lines on the material surface.
Labeling Tool
Prints text or QR codes and automatically applies labels to the correct cutting position.
3 Feeding Systems
For continuous cutting and automatic feeding of different fabric rolls.

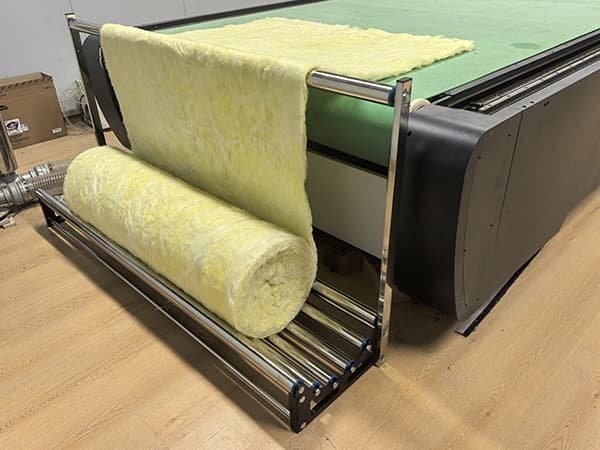

Automatic Feeding System
Equipped with independent feeding and correction motors, plus a photoelectric sensor system for automatic feeding and alignment. Supports up to 75 kg per roll.

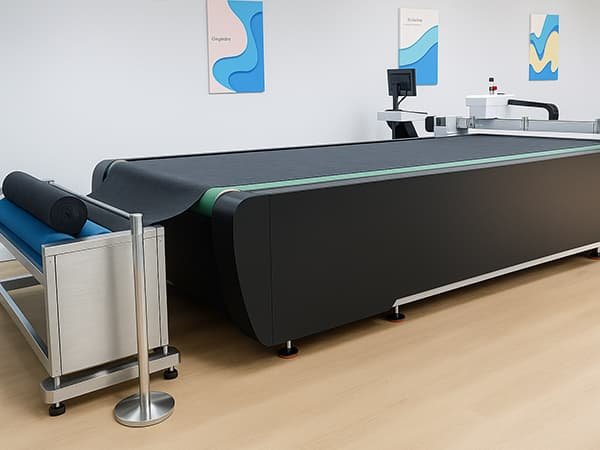

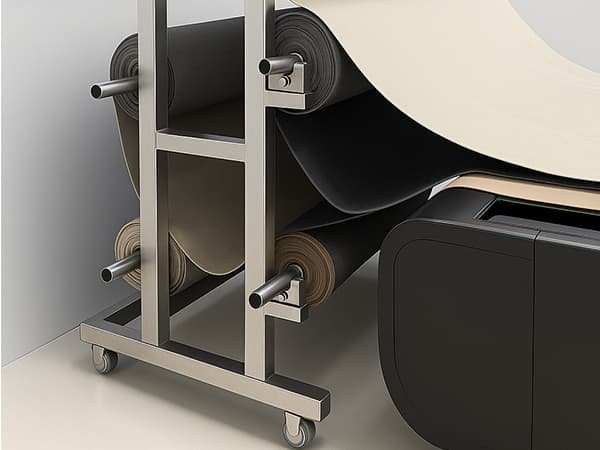

Multi-Layer Feeding System
Designed for multi-layer cutting. Holds up to 8 rolls of material and feeds them simultaneously. Each layer supports up to 65 kg.
Roller Feeding System
Built for soft or loose material rolls. No hanging needed — features bearing rollers for smooth, friction-free feeding.
Intelligent System
More than just cutting — it covers everything from design to nesting.
Smart Pattern Recognition System
Converts paper templates into digital data at a 1:1 scale.
Smart Nesting System
Generates the best nesting layout within 2 minutes, improving material utilization by up to 10%.
7 key configurations
This determines whether the machine can work continuously, stably, and with high precision — it’s essential.
High-Quality Core Components:
Equipped with Mitsubishi servo motors, Schneider drivers, Omron limit switches, HIWIN rails, and TBK bearings for reliable performance.
Strong Machine Frame:
Built with 100×100 mm square tubes (5 mm thick), fully welded, and supported every 60 cm to ensure a rigid and stable structure.
Powerful Drive System:
Dual servo motors with precision reducers and ground racks provide balanced power and fast cutting speed.
Multiple Tool Combinations:
Different tools can be configured and automatically switched to perform cutting, grooving, and marking with one machine.
Smart Control System:
The interface supports seven languages—Korean, Russian, Spanish, Italian, English, and French—for easy operation.
Powerful Material Holding System:
Equipped with a 7.5KW–9KW vacuum pump and 8/16 zones, supporting 4 suction modes to keep materials firmly in place.
Self-Designed Beam Module:
Made from aviation-grade aluminum alloy through mold extrusion, with a 220mm width and up to 8mm wall thickness, ensuring long-term durability without deformation.
9 industry solutions
Learn how automatic machine work by watching real videos.
About AMOR CNC
AMOR CNC is a professional manufacturer of CNC oscillating knife cutting machines in China.
With over 2000 ㎡ of factory space, we design and build high-precision cutters for gaskets, foam, leather, fabrics, and insulation materials.
Equipped with Mitsubishi servos, Schneider electrics, and intelligent software, AMOR CNC delivers stable, customizable, and high-end cutting solutions to global industries.
Our Services
From recommendation to production and delivery, we are committed to providing every customer with a truly stable CNC cutting machine. We focus on quality, precision, and reliability in every step.
01. Sample Testing
We have 6 dedicated testing machines covering all processing techniques. Customers can request sample tests anytime.
03. Fine Assembly
During the installation of rails, racks, and tables, we use dial indicators and granite squares for repeated calibration. The assembly accuracy is within 0.1 mm.
05. Internal Quality Inspection
Every machine runs for at least 12 hours before shipment. Full-size cutting accuracy is ≤ 0.1 mm, and tool alignment accuracy is ≤ 0.1 mm.
07. Packaging & Delivery
Three-layer waterproof and scratch-proof protection. Each part is securely fixed inside an L-shaped wooden crate to prevent pressure damage during shipping.
02. Precision Machining
The machine bed is processed by a 16-meter gantry machining center for rail and rack mounting surfaces, ensuring high precision drilling and milling.
04. Scientific Electrical Wiring
Each electrical cabinet has 2 cooling fans to maintain constant temperature. All wires are numbered and isolated to prevent friction and interference.
06. Cutting Test
We perform real cutting tests based on customers’ materials and drawings. Test videos and reports are sent for confirmation.
08. Installation & Training
We have a professional after-sales service team that provides both online and on-site installation and training. Our goal is to ensure your machine is set up smoothly and starts production without any issues.
Professional, creative, and reliable CNC cutting solution expert.
I have over 6 years of experience in CNC oscillating knife machine sales and applications. She quickly understands customer needs, I can quickly understand customer needs, help save costs, avoid common mistakes, and provide the best cutting solutions for every project.
3 Common Customer Concerns
Almost every customer has these worries before buying a machine — but once you choose AMOR CNC, you don’t need to worry anymore..
Before Purchase: Worried the machine won’t meet your needs?
No problem. Before you buy and before we ship, we test your exact materials and designs. You’ll receive test videos and reports — just like the photo on the right.
Video Call Support
Send us your material samples, and we’ll connect with you through a live video call. You can ask questions in real time and watch the actual cutting process.
Test Report
We’ll perform real cutting tests based on your material and provide detailed cutting data along with practical optimization suggestions.
After Delivery: Worried you can’t install or use it?
Each machine comes with a complete installation and training guide. Just follow the steps. And if you have any questions, don’t worry — contact us anytime, like the customer on the left did.
Online Support
If you face any problems during installation, contact us anytime. We’ll reply quickly and help you solve the issue.
Operation Tutorial
From installation to startup, we provide complete video tutorials with English subtitles. Just follow the steps shown in the videos.
During Use: Worried about after-sales support?
Simply send us your question via WhatsApp or WeChat. Our engineers will reply as quickly as possible — sometimes in less than one minute.
Our Valued Clients
Each photo here captures a real moment of our cooperation with clients.
Some were taken when clients visited our factory for machine testing and learning.
Others show our engineers providing on-site training and support at the customer’s location.
Request a Custom Cutting Solution
Tell us about your materials, and we’ll recommend the right CNC cutting machine for your business.
By filling out the form, you will:
Receive a free material cutting test report with real data and photos
Get professional advice from our engineers within 24 hours
Learn the most suitable tool configuration and model for your industry
🧾 Let’s start your project today — fill out the form and get a professional solution.
Contact Us Now!
Share your material details and requirements, and our engineers will design a customized solution for you.
